CSA LSZH TYPE CIC TC Tray Control, Multi-Conductor, 300 V
LSZH Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
300 V
Optional: 600 / 1000 V
Product Construction
Insulation:
XLPE (RW90 rated) rated: 90°C wet / dry
Shielding (foil-free edge):
OS (optional)
Jacket:
LSZH outer black jacket rated: 90°C
Available in:
Custom insulation / jacket colours
Composite constructions
Certifications
Certifications/Compliances
- CSA C22.2 NO. 230, Tray Cables
- CSA C22.2 NO. 239, Control and instrumentation cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556/UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- CSA C22.2 No. 2556/UL 2556 ST1 Limited Smoke rated
- XLPE (RW90) rated, 90°C wet/dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -30°C cold bend rated/-25°C cold impact rated
- Halogen-free rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
Colour Coding
- 2C – Black & white
- 3C – Black, red & blue
- 4C – Black, red, blue & white
- 5C and greater – Black, number-coded with white ink

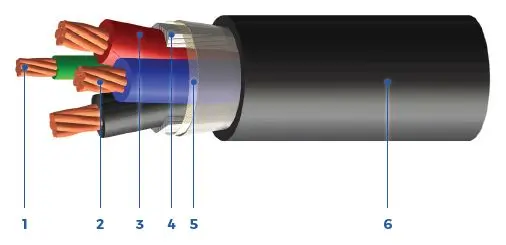

Properties
- Insulated Bonding Conductor
- Stranded Bare Copper Conductors (Tin-coated Available)
- Halogen Free XLPE (RW90 Rated) Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- LSZH Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Bonding Conductor Size | Nominal Diameter Overall Cable) | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG | AWG | in. | mm l | lb|1000ft | kg|km | 30°C ambient | lb | kg | in. | mm | ||
| 42010M20020080G | 2 | 20 | 20 | 0.291 | 7.4 | 44 | 65 | 3.5 | 24 | 11 | 2.6 | 66 |
| 42010M20030080G | 3 | 20 | 20 | 0.313 | 8.0 | 51 | 77 | 3.5 | 32 | 15 | 2.8 | 72 |
| 42010M20040080G | 4 | 20 | 20 | 0.338 | 8.6 | 61 | 91 | 2.8 | 40 | 18 | 3.0 | 77 |
| 42010M20050080G | 5 | 20 | 20 | 0.364 | 9.3 | 70 | 104 | 2.8 | 48 | 22 | 3.3 | 83 |
| 42010M20060080G | 6 | 20 | 20 | 0.364 | 9.3 | 74 | 110 | 2.45 | 56 | 25 | 3.3 | 83 |
| 42010M20080080G | 8 | 20 | 20 | 0.416 | 10.6 | 93 | 139 | 2.45 | 72 | 33 | 3.7 | 95 |
| 42010M20100080G | 10 | 20 | 20 | 0.450 | 11.4 | 107 | 159 | 2.45 | 88 | 40 | 4.0 | 103 |
| 42010M20120080G | 12 | 20 | 20 | 0.471 | 12.0 | 118 | 175 | 2.45 | 104 | 47 | 4.2 | 108 |
| 42010M20150080G | 15 | 20 | 20 | 0.510 | 13.0 | 139 | 206 | 2.45 | 128 | 58 | 4.6 | 117 |
| 42010M20200080G | 20 | 20 | 20 | 0.592 | 15.0 | 190 | 283 | 2.45 | 168 | 76 | 5.3 | 135 |
| 42010M20250080G | 25 | 20 | 20 | 0.652 | 16.6 | 226 | 337 | 2.1 | 208 | 94 | 5.9 | 149 |
| 42010M20300080G | 30 | 20 | 20 | 0.699 | 17.8 | 258 | 384 | 2.1 | 248 | 112 | 6.3 | 160 |
| 42010M20400080G | 40 | 20 | 20 | 0.780 | 19.8 | 325 | 483 | 2.1 | 328 | 149 | 7.0 | 178 |
| 42010M20500080G | 50 | 20 | 20 | 0.845 | 21.5 | 384 | 572 | 1.75 | 408 | 185 | 7.6 | 193 |
| 42010M18020080G | 2 | 18 | 18 | 0.312 | 7.9 | 53 | 79 | 5 | 39 | 18 | 2.8 | 71 |
| 42010M18030080G | 3 | 18 | 18 | 0.337 | 8.6 | 63 | 94 | 5 | 52 | 24 | 3.0 | 77 |
| 42010M18040080G | 4 | 18 | 18 | 0.365 | 9.3 | 76 | 114 | 4 | 65 | 29 | 3.3 | 83 |
| 42010M18050080G | 5 | 18 | 18 | 0.394 | 10.0 | 88 | 131 | 4 | 78 | 35 | 3.5 | 90 |
| 42010M18060080G | 6 | 18 | 18 | 0.394 | 10.0 | 93 | 139 | 3.5 | 91 | 41 | 3.5 | 90 |
| 42010M18080080G | 8 | 18 | 18 | 0.453 | 11.5 | 118 | 175 | 3.5 | 117 | 53 | 4.1 | 103 |
| 42010M18100080G | 10 | 18 | 18 | 0.490 | 12.5 | 136 | 203 | 3.5 | 143 | 65 | 4.4 | 112 |
| 42010M18120080G | 12 | 18 | 18 | 0.513 | 13.0 | 153 | 227 | 3.5 | 169 | 77 | 4.6 | 117 |
| 42010M18150080G | 15 | 18 | 18 | 0.587 | 14.9 | 200 | 297 | 3.5 | 208 | 94 | 5.3 | 134 |
| 42010M18200080G | 20 | 18 | 18 | 0.645 | 16.4 | 246 | 366 | 3.5 | 273 | 124 | 5.8 | 147 |
| 42010M18250080G | 25 | 18 | 18 | 0.712 | 18.1 | 295 | 439 | 3 | 338 | 153 | 6.4 | 163 |
| 42010M18300080G | 30 | 18 | 18 | 0.765 | 19.4 | 338 | 503 | 3 | 403 | 183 | 6.9 | 175 |
| 42010M18400080G | 40 | 18 | 18 | 0.895 | 22.7 | 468 | 696 | 3 | 533 | 242 | 8.1 | 205 |
| 42010M18500080G | 50 | 18 | 18 | 0.967 | 24.6 | 554 | 825 | 2.5 | 663 | 301 | 8.7 | 221 |
| 42010M16020080G | 2 | 16 | 16 | 0.338 | 8.6 | 71 | 105 | 10 | 62 | 28 | 3.0 | 77 |
| 42010M16030080G | 3 | 16 | 16 | 0.366 | 9.3 | 82 | 122 | 10 | 82 | 37 | 3.3 | 84 |
| 42010M16040080G | 4 | 16 | 16 | 0.398 | 10.1 | 97 | 145 | 8 | 103 | 47 | 3.6 | 91 |
| 42010M16050080G | 5 | 16 | 16 | 0.430 | 10.9 | 113 | 168 | 8 | 124 | 56 | 3.9 | 98 |
| 42010M16060080G | 6 | 16 | 16 | 0.430 | 10.9 | 122 | 181 | 7 | 144 | 65 | 3.9 | 98 |
| 42010M16080080G | 8 | 16 | 16 | 0.496 | 12.6 | 155 | 230 | 7 | 185 | 84 | 4.5 | 113 |
| 42010M16100080G | 10 | 16 | 16 | 0.568 | 14.4 | 201 | 299 | 7 | 227 | 103 | 5.1 | 130 |
| 42010M16120080G | 12 | 16 | 16 | 0.594 | 15.1 | 226 | 336 | 7 | 268 | 121 | 5.3 | 136 |
| 42010M16150080G | 15 | 16 | 16 | 0.644 | 16.4 | 264 | 392 | 7 | 330 | 150 | 5.8 | 147 |
| 42010M16200080G | 20 | 16 | 16 | 0.708 | 18.0 | 330 | 491 | 7 | 433 | 196 | 6.4 | 162 |
| 42010M16250080G | 25 | 16 | 16 | 0.784 | 19.9 | 398 | 592 | 6 | 536 | 243 | 7.1 | 179 |
| 42010M16300080G | 30 | 16 | 16 | 0.843 | 21.4 | 460 | 685 | 6 | 639 | 290 | 7.6 | 193 |
| 42010M16400080G | 40 | 16 | 16 | 0.985 | 25.0 | 628 | 935 | 6 | 845 | 383 | 8.9 | 225 |
| 42010M16500080G | 50 | 16 | 16 | 1.066 | 27.1 | 754 | 1122 | 5 | 1051 | 477 | 9.6 | 244 |
| 42010M14020080G | 2 | 14 | 14 | 0.366 | 9.3 | 88 | 132 | 25 | 99 | 45 | 3.3 | 84 |
| 42010M14030080G | 3 | 14 | 14 | 0.398 | 10.1 | 109 | 162 | 25 | 132 | 60 | 3.6 | 91 |
| 42010M14040080G | 4 | 14 | 14 | 0.433 | 11.0 | 125 | 187 | 20 | 165 | 75 | 3.9 | 99 |
| 42010M14050080G | 5 | 14 | 14 | 0.469 | 11.9 | 147 | 218 | 20 | 197 | 90 | 4.2 | 107 |
| 42010M14060080G | 6 | 14 | 14 | 0.469 | 11.9 | 160 | 238 | 17.5 | 230 | 104 | 4.2 | 107 |
| 42010M14080080G | 8 | 14 | 14 | 0.573 | 14.6 | 224 | 333 | 17.5 | 296 | 134 | 5.2 | 131 |
| 42010M14100080G | 10 | 14 | 14 | 0.620 | 15.8 | 262 | 389 | 17.5 | 362 | 164 | 5.6 | 142 |
| 42010M14120080G | 12 | 14 | 14 | 0.649 | 16.5 | 297 | 441 | 17.5 | 428 | 194 | 5.8 | 148 |
| 42010M14150080G | 15 | 15 | 14 | 0.705 | 17.9 | 351 | 522 | 17.5 | 526 | 239 | 6.3 | 161 |
| 42010M14200080G | 20 | 20 | 14 | 0.777 | 19.7 | 442 | 658 | 17.5 | 691 | 313 | 7.0 | 178 |
| 42010M14250080G | 25 | 25 | 14 | 0.902 | 22.9 | 574 | 855 | 15 | 855 | 388 | 8.1 | 206 |
| 42010M14300080G | 30 | 30 | 14 | 0.969 | 24.6 | 665 | 990 | 15 | 1020 | 463 | 8.7 | 221 |
| 42010M14400080G | 40 | 40 | 14 | 1.082 | 27.5 | 847 | 1261 | 15 | 1349 | 612 | 9.7 | 247 |
| 42010M14500080G | 50 | 50 | 14 | 1.173 | 29.8 | 1021 | 1520 | 12.5 | 1678 | 761 | 10.6 | 268 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 2 or Table 57. Values are corrected for number of insulated conductors as applicable according to Table 5C or Table 57.

Markets / Applications
- Transit
- OEM
- Transit
- Industrial
- Utility
Voltage
300 V
Optional: 600 / 1000 V
Product Construction
Insulation:
XLPE (RW90 rated) rated: 90°C wet / dry
Shielding (foil-free edge):
OS (optional)
Jacket:
LSZH outer black jacket rated: 90°C
Available in:
Custom insulation / jacket colours
Composite constructions
Certifications/Compliances
- CSA C22.2 NO. 230, Tray Cables
- CSA C22.2 NO. 239, Control and instrumentation cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556/UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- CSA C22.2 No. 2556/UL 2556 ST1 Limited Smoke rated
- XLPE (RW90) rated, 90°C wet/dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -30°C cold bend rated/-25°C cold impact rated
- Halogen-free rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
Colour Coding
- 2C – Black & white
- 3C – Black, red & blue
- 4C – Black, red, blue & white
- 5C and greater – Black, number-coded with white ink
- Insulated Bonding Conductor
- Stranded Bare Copper Conductors (Tin-coated Available)
- Halogen Free XLPE (RW90 Rated) Insulated Conductors
- Polypropylene Fillers
- Fiberglass Tape
- LSZH Outer Protective Jacket
| Part Number | Number of Conductors | Conductor Size | Bonding Conductor Size | Nominal Diameter Overall Cable) | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| AWG | AWG | in. | mm l | lb|1000ft | kg|km | 30°C ambient | lb | kg | in. | mm | ||
| 42010M20020080G | 2 | 20 | 20 | 0.291 | 7.4 | 44 | 65 | 3.5 | 24 | 11 | 2.6 | 66 |
| 42010M20030080G | 3 | 20 | 20 | 0.313 | 8.0 | 51 | 77 | 3.5 | 32 | 15 | 2.8 | 72 |
| 42010M20040080G | 4 | 20 | 20 | 0.338 | 8.6 | 61 | 91 | 2.8 | 40 | 18 | 3.0 | 77 |
| 42010M20050080G | 5 | 20 | 20 | 0.364 | 9.3 | 70 | 104 | 2.8 | 48 | 22 | 3.3 | 83 |
| 42010M20060080G | 6 | 20 | 20 | 0.364 | 9.3 | 74 | 110 | 2.45 | 56 | 25 | 3.3 | 83 |
| 42010M20080080G | 8 | 20 | 20 | 0.416 | 10.6 | 93 | 139 | 2.45 | 72 | 33 | 3.7 | 95 |
| 42010M20100080G | 10 | 20 | 20 | 0.450 | 11.4 | 107 | 159 | 2.45 | 88 | 40 | 4.0 | 103 |
| 42010M20120080G | 12 | 20 | 20 | 0.471 | 12.0 | 118 | 175 | 2.45 | 104 | 47 | 4.2 | 108 |
| 42010M20150080G | 15 | 20 | 20 | 0.510 | 13.0 | 139 | 206 | 2.45 | 128 | 58 | 4.6 | 117 |
| 42010M20200080G | 20 | 20 | 20 | 0.592 | 15.0 | 190 | 283 | 2.45 | 168 | 76 | 5.3 | 135 |
| 42010M20250080G | 25 | 20 | 20 | 0.652 | 16.6 | 226 | 337 | 2.1 | 208 | 94 | 5.9 | 149 |
| 42010M20300080G | 30 | 20 | 20 | 0.699 | 17.8 | 258 | 384 | 2.1 | 248 | 112 | 6.3 | 160 |
| 42010M20400080G | 40 | 20 | 20 | 0.780 | 19.8 | 325 | 483 | 2.1 | 328 | 149 | 7.0 | 178 |
| 42010M20500080G | 50 | 20 | 20 | 0.845 | 21.5 | 384 | 572 | 1.75 | 408 | 185 | 7.6 | 193 |
| 42010M18020080G | 2 | 18 | 18 | 0.312 | 7.9 | 53 | 79 | 5 | 39 | 18 | 2.8 | 71 |
| 42010M18030080G | 3 | 18 | 18 | 0.337 | 8.6 | 63 | 94 | 5 | 52 | 24 | 3.0 | 77 |
| 42010M18040080G | 4 | 18 | 18 | 0.365 | 9.3 | 76 | 114 | 4 | 65 | 29 | 3.3 | 83 |
| 42010M18050080G | 5 | 18 | 18 | 0.394 | 10.0 | 88 | 131 | 4 | 78 | 35 | 3.5 | 90 |
| 42010M18060080G | 6 | 18 | 18 | 0.394 | 10.0 | 93 | 139 | 3.5 | 91 | 41 | 3.5 | 90 |
| 42010M18080080G | 8 | 18 | 18 | 0.453 | 11.5 | 118 | 175 | 3.5 | 117 | 53 | 4.1 | 103 |
| 42010M18100080G | 10 | 18 | 18 | 0.490 | 12.5 | 136 | 203 | 3.5 | 143 | 65 | 4.4 | 112 |
| 42010M18120080G | 12 | 18 | 18 | 0.513 | 13.0 | 153 | 227 | 3.5 | 169 | 77 | 4.6 | 117 |
| 42010M18150080G | 15 | 18 | 18 | 0.587 | 14.9 | 200 | 297 | 3.5 | 208 | 94 | 5.3 | 134 |
| 42010M18200080G | 20 | 18 | 18 | 0.645 | 16.4 | 246 | 366 | 3.5 | 273 | 124 | 5.8 | 147 |
| 42010M18250080G | 25 | 18 | 18 | 0.712 | 18.1 | 295 | 439 | 3 | 338 | 153 | 6.4 | 163 |
| 42010M18300080G | 30 | 18 | 18 | 0.765 | 19.4 | 338 | 503 | 3 | 403 | 183 | 6.9 | 175 |
| 42010M18400080G | 40 | 18 | 18 | 0.895 | 22.7 | 468 | 696 | 3 | 533 | 242 | 8.1 | 205 |
| 42010M18500080G | 50 | 18 | 18 | 0.967 | 24.6 | 554 | 825 | 2.5 | 663 | 301 | 8.7 | 221 |
| 42010M16020080G | 2 | 16 | 16 | 0.338 | 8.6 | 71 | 105 | 10 | 62 | 28 | 3.0 | 77 |
| 42010M16030080G | 3 | 16 | 16 | 0.366 | 9.3 | 82 | 122 | 10 | 82 | 37 | 3.3 | 84 |
| 42010M16040080G | 4 | 16 | 16 | 0.398 | 10.1 | 97 | 145 | 8 | 103 | 47 | 3.6 | 91 |
| 42010M16050080G | 5 | 16 | 16 | 0.430 | 10.9 | 113 | 168 | 8 | 124 | 56 | 3.9 | 98 |
| 42010M16060080G | 6 | 16 | 16 | 0.430 | 10.9 | 122 | 181 | 7 | 144 | 65 | 3.9 | 98 |
| 42010M16080080G | 8 | 16 | 16 | 0.496 | 12.6 | 155 | 230 | 7 | 185 | 84 | 4.5 | 113 |
| 42010M16100080G | 10 | 16 | 16 | 0.568 | 14.4 | 201 | 299 | 7 | 227 | 103 | 5.1 | 130 |
| 42010M16120080G | 12 | 16 | 16 | 0.594 | 15.1 | 226 | 336 | 7 | 268 | 121 | 5.3 | 136 |
| 42010M16150080G | 15 | 16 | 16 | 0.644 | 16.4 | 264 | 392 | 7 | 330 | 150 | 5.8 | 147 |
| 42010M16200080G | 20 | 16 | 16 | 0.708 | 18.0 | 330 | 491 | 7 | 433 | 196 | 6.4 | 162 |
| 42010M16250080G | 25 | 16 | 16 | 0.784 | 19.9 | 398 | 592 | 6 | 536 | 243 | 7.1 | 179 |
| 42010M16300080G | 30 | 16 | 16 | 0.843 | 21.4 | 460 | 685 | 6 | 639 | 290 | 7.6 | 193 |
| 42010M16400080G | 40 | 16 | 16 | 0.985 | 25.0 | 628 | 935 | 6 | 845 | 383 | 8.9 | 225 |
| 42010M16500080G | 50 | 16 | 16 | 1.066 | 27.1 | 754 | 1122 | 5 | 1051 | 477 | 9.6 | 244 |
| 42010M14020080G | 2 | 14 | 14 | 0.366 | 9.3 | 88 | 132 | 25 | 99 | 45 | 3.3 | 84 |
| 42010M14030080G | 3 | 14 | 14 | 0.398 | 10.1 | 109 | 162 | 25 | 132 | 60 | 3.6 | 91 |
| 42010M14040080G | 4 | 14 | 14 | 0.433 | 11.0 | 125 | 187 | 20 | 165 | 75 | 3.9 | 99 |
| 42010M14050080G | 5 | 14 | 14 | 0.469 | 11.9 | 147 | 218 | 20 | 197 | 90 | 4.2 | 107 |
| 42010M14060080G | 6 | 14 | 14 | 0.469 | 11.9 | 160 | 238 | 17.5 | 230 | 104 | 4.2 | 107 |
| 42010M14080080G | 8 | 14 | 14 | 0.573 | 14.6 | 224 | 333 | 17.5 | 296 | 134 | 5.2 | 131 |
| 42010M14100080G | 10 | 14 | 14 | 0.620 | 15.8 | 262 | 389 | 17.5 | 362 | 164 | 5.6 | 142 |
| 42010M14120080G | 12 | 14 | 14 | 0.649 | 16.5 | 297 | 441 | 17.5 | 428 | 194 | 5.8 | 148 |
| 42010M14150080G | 15 | 15 | 14 | 0.705 | 17.9 | 351 | 522 | 17.5 | 526 | 239 | 6.3 | 161 |
| 42010M14200080G | 20 | 20 | 14 | 0.777 | 19.7 | 442 | 658 | 17.5 | 691 | 313 | 7.0 | 178 |
| 42010M14250080G | 25 | 25 | 14 | 0.902 | 22.9 | 574 | 855 | 15 | 855 | 388 | 8.1 | 206 |
| 42010M14300080G | 30 | 30 | 14 | 0.969 | 24.6 | 665 | 990 | 15 | 1020 | 463 | 8.7 | 221 |
| 42010M14400080G | 40 | 40 | 14 | 1.082 | 27.5 | 847 | 1261 | 15 | 1349 | 612 | 9.7 | 247 |
| 42010M14500080G | 50 | 50 | 14 | 1.173 | 29.8 | 1021 | 1520 | 12.5 | 1678 | 761 | 10.6 | 268 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 2 or Table 57. Values are corrected for number of insulated conductors as applicable according to Table 5C or Table 57.
