CSA TYPE CIC RW90 TC Tray Control, Multi-Conductor, 600 V
Tray Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.

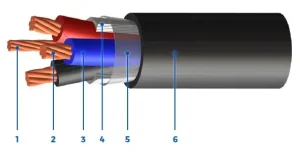

Construction
VOLTAGE
600 V
Optional: 300, 1000, 2000 V
PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding (optional):
Aluminum/mylar film
Copper tape, helical or corrugated
Tin-coated copper braid
-
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Jacket:
- Available in:
- Custom insulation / jacket colours
- Composite constructions
COLOUR CODING
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C or greater – Black, number-coded with white ink
Certifications
CERTIFICATION/COMPLIANCES
- CSA C22.2 No. 230, Tray cables
- CSA C22.2 No. 239, Control and instrumentation cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
Properties
|
 |
| Part Number | Number of Conductors | Conductor Size | Ground Wire Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius(Pull) |
| AWG | AWG | in. | mm | lbs/1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 4C010M140200000 | 2 | 14 | 14 | 0.372 | 9.5 | 82 | 122 | 25 | 66 | 30 | 3.3 | 85 |
| 4C010M140300000 | 3 | 14 | 14 | 0.403 | 10.2 | 100 | 149 | 25 | 99 | 45 | 3.6 | 92 |
| 4C010M140400000 | 4 | 14 | 14 | 0.436 | 11.1 | 122 | 182 | 20 | 132 | 60 | 3.9 | 100 |
| 4C010M140500000 | 5 | 14 | 14 | 0.465 | 11.8 | 140 | 208 | 20 | 165 | 75 | 4.2 | 106 |
| 4C010M140600000 | 6 | 14 | 14 | 0.505 | 12.8 | 163 | 243 | 20 | 197 | 90 | 4.5 | 115 |
| 4C010M140700000 | 7 | 14 | 14 | 0.575 | 14.6 | 202 | 300 | 17.5 | 230 | 104 | 5.2 | 131 |
| 4C010M140800000 | 8 | 14 | 14 | 0.616 | 15.7 | 227 | 338 | 17.5 | 263 | 119 | 5.5 | 141 |
| 4C010M141000000 | 10 | 14 | 14 | 0.668 | 17.0 | 265 | 394 | 17.5 | 329 | 149 | 6.0 | 153 |
| 4C010M141200000 | 12 | 14 | 14 | 0.688 | 17.5 | 300 | 446 | 17.5 | 395 | 179 | 6.2 | 157 |
| 4C010M141400000 | 14 | 14 | 14 | 0.722 | 18.4 | 341 | 508 | 17.5 | 461 | 209 | 6.5 | 165 |
| 4C010M141500000 | 15 | 14 | 14 | 0.741 | 18.8 | 361 | 537 | 17.5 | 494 | 224 | 6.7 | 169 |
| 4C010M142000000 | 20 | 14 | 14 | 0.841 | 21.4 | 462 | 688 | 17.5 | 658 | 298 | 7.6 | 192 |
| 4C010M142500000 | 25 | 14 | 14 | 0.974 | 24.7 | 599 | 891 | 15 | 823 | 373 | 8.8 | 223 |
| 4C010M143000000 | 30 | 14 | 14 | 1.028 | 26.1 | 690 | 1027 | 15 | 987 | 448 | 9.3 | 235 |
| 4C010M144000000 | 40 | 14 | 14 | 1.147 | 29.1 | 889 | 1324 | 15 | 1316 | 597 | 10.3 | 262 |
| 4C010M145000000 | 50 | 14 | 14 | 1.272 | 32.3 | 1082 | 1609 | 12.5 | 1645 | 746 | 11.4 | 291 |
| 4R010M120200000 | 2 | 12 | 14 | 0.408 | 10.4 | 104 | 154 | 20 | 104 | 47 | 3.7 | 93 |
| 4R010M120300000 | 3 | 12 | 14 | 0.443 | 11.3 | 132 | 196 | 20 | 157 | 71 | 4.0 | 101 |
| 4R010M120400000 | 4 | 12 | 14 | 0.480 | 12.2 | 160 | 239 | 16 | 209 | 95 | 4.3 | 110 |
| 4R010M120500000 | 5 | 12 | 14 | 0.514 | 13.1 | 192 | 285 | 16 | 261 | 118 | 4.6 | 117 |
| 4R010M120600000 | 6 | 12 | 14 | 0.589 | 15.0 | 240 | 358 | 16 | 313 | 142 | 5.3 | 135 |
| 4R010M120700000 | 7 | 12 | 14 | 0.634 | 16.1 | 275 | 410 | 14 | 365 | 166 | 5.7 | 145 |
| 4R010M120800000 | 8 | 12 | 14 | 0.681 | 17.3 | 304 | 453 | 14 | 418 | 189 | 6.1 | 156 |
| 4R010M121000000 | 10 | 12 | 14 | 0.740 | 18.8 | 359 | 535 | 14 | 522 | 237 | 6.7 | 169 |
| 4R010M121200000 | 12 | 12 | 14 | 0.763 | 19.4 | 413 | 615 | 14 | 626 | 284 | 6.9 | 174 |
| 4R010M121400000 | 14 | 12 | 14 | 0.802 | 20.4 | 469 | 698 | 14 | 731 | 331 | 7.2 | 183 |
| 4R010M121500000 | 15 | 12 | 14 | 0.823 | 20.9 | 498 | 741 | 14 | 783 | 355 | 7.4 | 188 |
| 4R010M122000000 | 20 | 12 | 14 | 0.976 | 24.8 | 677 | 1008 | 14 | 1044 | 474 | 8.8 | 223 |
| 4R010M122500000 | 25 | 12 | 14 | 1.082 | 27.5 | 830 | 1235 | 12 | 1305 | 592 | 9.7 | 247 |
| 4R010M123000000 | 30 | 12 | 14 | 1.144 | 29.1 | 962 | 1432 | 12 | 1566 | 710 | 10.3 | 261 |
| 4R010M124000000 | 40 | 12 | 14 | 1.278 | 32.5 | 1251 | 1861 | 12 | 2088 | 947 | 11.5 | 292 |
| 4R010M124000000 | 40 | 12 | 14 | 1.278 | 32.5 | 1251 | 1861 | 12 | 2088 | 947 | 11.5 | 292 |
| 4R010M125000000 | 50 | 12 | 14 | 1.420 | 36.1 | 1530 | 2277 | 10 | 2610 | 1184 | 12.8 | 325 |
| 4R010M100200000 | 2 | 10 | 12 | 0.458 | 11.6 | 144 | 215 | 30 | 166 | 75 | 4.1 | 105 |
| 4R010M100300000 | 3 | 10 | 12 | 0.498 | 12.7 | 184 | 275 | 30 | 249 | 113 | 4.5 | 114 |
| 4R010M100400000 | 4 | 10 | 12 | 0.572 | 14.5 | 245 | 365 | 24 | 332 | 151 | 5.2 | 131 |
| 4R010M100500000 | 5 | 10 | 12 | 0.611 | 15.5 | 288 | 429 | 24 | 415 | 188 | 5.5 | 140 |
| 4R010M100600000 | 6 | 10 | 12 | 0.664 | 16.9 | 338 | 503 | 24 | 498 | 226 | 6.0 | 152 |
| 4R010M100700000 | 7 | 10 | 12 | 0.717 | 18.2 | 388 | 578 | 21 | 581 | 264 | 6.5 | 164 |
| 4R010M100800000 | 8 | 10 | 12 | 0.771 | 19.6 | 433 | 645 | 21 | 664 | 301 | 6.9 | 176 |
| 4R010M101000000 | 10 | 10 | 12 | 0.840 | 21.3 | 514 | 764 | 21 | 830 | 376 | 7.6 | 192 |
| 4R010M101200000 | 12 | 10 | 12 | 0.906 | 23.0 | 624 | 928 | 21 | 996 | 452 | 8.2 | 207 |
| 4R010M101400000 | 14 | 10 | 12 | 0.952 | 24.2 | 712 | 1060 | 21 | 1162 | 527 | 8.6 | 218 |
| 4R010M101500000 | 15 | 10 | 12 | 0.977 | 24.8 | 755 | 1124 | 21 | 1245 | 565 | 8.8 | 223 |
| 4R010M102500000 | 25 | 10 | 12 | 1.232 | 31.3 | 1197 | 1781 | 18 | 2075 | 941 | 11.1 | 282 |
| 4R010M103000000 | 30 | 10 | 12 | 1.304 | 33.1 | 1398 | 2080 | 18 | 2490 | 1129 | 11.7 | 298 |
| 4R010M104000000 | 40 | 10 | 12 | 1.461 | 37.1 | 1824 | 2714 | 18 | 3320 | 1506 | 13.1 | 334 |
| 4R010M105000000 | 50 | 10 | 12 | 1.626 | 41.3 | 2238 | 3330 | 15 | 4150 | 1882 | 14.6 | 372 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 2 or Table 57. Values are corrected for number of insulated conductors as applicable according to Table 5C or Table 57.
Markets / Applications
- Energy
- Industrial
- Industrial Construction/Automation
- Petrochem/Pulp & Paper
- Utility
VOLTAGE
600 V
Optional: 300, 1000, 2000 V
PRODUCT CONSTRUCTION
Insulation:
XLPE (RW90 rated)rated: 90°C wet / 105°C dry
Shielding (optional):
Aluminum/mylar film
Copper tape, helical or corrugated
Tin-coated copper braid
-
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Jacket:
- Available in:
- Custom insulation / jacket colours
- Composite constructions
COLOUR CODING
- 2C Black & white
- 3C Black, red & blue
- 4C Black, red, blue & white
- 5C or greater – Black, number-coded with white ink
CERTIFICATION/COMPLIANCES
- CSA C22.2 No. 230, Tray cables
- CSA C22.2 No. 239, Control and instrumentation cables
- CSA C22.2 No. 38, Thermoset-insulated wires and cables
- CSA C22.2 No. 2556 / UL 2556 FT4, Vertical Tray Flame Test rated
- IEEE 383/1202 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet / 105°C dry
- UV sunlight resistant “SUN RES” (all colours)
- Direct burial rated
- -40°C cold bend / impact rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
|
|
| Part Number | Number of Conductors | Conductor Size | Ground Wire Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius(Pull) |
| AWG | AWG | in. | mm | lbs/1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | ||
| 4C010M140200000 | 2 | 14 | 14 | 0.372 | 9.5 | 82 | 122 | 25 | 66 | 30 | 3.3 | 85 |
| 4C010M140300000 | 3 | 14 | 14 | 0.403 | 10.2 | 100 | 149 | 25 | 99 | 45 | 3.6 | 92 |
| 4C010M140400000 | 4 | 14 | 14 | 0.436 | 11.1 | 122 | 182 | 20 | 132 | 60 | 3.9 | 100 |
| 4C010M140500000 | 5 | 14 | 14 | 0.465 | 11.8 | 140 | 208 | 20 | 165 | 75 | 4.2 | 106 |
| 4C010M140600000 | 6 | 14 | 14 | 0.505 | 12.8 | 163 | 243 | 20 | 197 | 90 | 4.5 | 115 |
| 4C010M140700000 | 7 | 14 | 14 | 0.575 | 14.6 | 202 | 300 | 17.5 | 230 | 104 | 5.2 | 131 |
| 4C010M140800000 | 8 | 14 | 14 | 0.616 | 15.7 | 227 | 338 | 17.5 | 263 | 119 | 5.5 | 141 |
| 4C010M141000000 | 10 | 14 | 14 | 0.668 | 17.0 | 265 | 394 | 17.5 | 329 | 149 | 6.0 | 153 |
| 4C010M141200000 | 12 | 14 | 14 | 0.688 | 17.5 | 300 | 446 | 17.5 | 395 | 179 | 6.2 | 157 |
| 4C010M141400000 | 14 | 14 | 14 | 0.722 | 18.4 | 341 | 508 | 17.5 | 461 | 209 | 6.5 | 165 |
| 4C010M141500000 | 15 | 14 | 14 | 0.741 | 18.8 | 361 | 537 | 17.5 | 494 | 224 | 6.7 | 169 |
| 4C010M142000000 | 20 | 14 | 14 | 0.841 | 21.4 | 462 | 688 | 17.5 | 658 | 298 | 7.6 | 192 |
| 4C010M142500000 | 25 | 14 | 14 | 0.974 | 24.7 | 599 | 891 | 15 | 823 | 373 | 8.8 | 223 |
| 4C010M143000000 | 30 | 14 | 14 | 1.028 | 26.1 | 690 | 1027 | 15 | 987 | 448 | 9.3 | 235 |
| 4C010M144000000 | 40 | 14 | 14 | 1.147 | 29.1 | 889 | 1324 | 15 | 1316 | 597 | 10.3 | 262 |
| 4C010M145000000 | 50 | 14 | 14 | 1.272 | 32.3 | 1082 | 1609 | 12.5 | 1645 | 746 | 11.4 | 291 |
| 4R010M120200000 | 2 | 12 | 14 | 0.408 | 10.4 | 104 | 154 | 20 | 104 | 47 | 3.7 | 93 |
| 4R010M120300000 | 3 | 12 | 14 | 0.443 | 11.3 | 132 | 196 | 20 | 157 | 71 | 4.0 | 101 |
| 4R010M120400000 | 4 | 12 | 14 | 0.480 | 12.2 | 160 | 239 | 16 | 209 | 95 | 4.3 | 110 |
| 4R010M120500000 | 5 | 12 | 14 | 0.514 | 13.1 | 192 | 285 | 16 | 261 | 118 | 4.6 | 117 |
| 4R010M120600000 | 6 | 12 | 14 | 0.589 | 15.0 | 240 | 358 | 16 | 313 | 142 | 5.3 | 135 |
| 4R010M120700000 | 7 | 12 | 14 | 0.634 | 16.1 | 275 | 410 | 14 | 365 | 166 | 5.7 | 145 |
| 4R010M120800000 | 8 | 12 | 14 | 0.681 | 17.3 | 304 | 453 | 14 | 418 | 189 | 6.1 | 156 |
| 4R010M121000000 | 10 | 12 | 14 | 0.740 | 18.8 | 359 | 535 | 14 | 522 | 237 | 6.7 | 169 |
| 4R010M121200000 | 12 | 12 | 14 | 0.763 | 19.4 | 413 | 615 | 14 | 626 | 284 | 6.9 | 174 |
| 4R010M121400000 | 14 | 12 | 14 | 0.802 | 20.4 | 469 | 698 | 14 | 731 | 331 | 7.2 | 183 |
| 4R010M121500000 | 15 | 12 | 14 | 0.823 | 20.9 | 498 | 741 | 14 | 783 | 355 | 7.4 | 188 |
| 4R010M122000000 | 20 | 12 | 14 | 0.976 | 24.8 | 677 | 1008 | 14 | 1044 | 474 | 8.8 | 223 |
| 4R010M122500000 | 25 | 12 | 14 | 1.082 | 27.5 | 830 | 1235 | 12 | 1305 | 592 | 9.7 | 247 |
| 4R010M123000000 | 30 | 12 | 14 | 1.144 | 29.1 | 962 | 1432 | 12 | 1566 | 710 | 10.3 | 261 |
| 4R010M124000000 | 40 | 12 | 14 | 1.278 | 32.5 | 1251 | 1861 | 12 | 2088 | 947 | 11.5 | 292 |
| 4R010M124000000 | 40 | 12 | 14 | 1.278 | 32.5 | 1251 | 1861 | 12 | 2088 | 947 | 11.5 | 292 |
| 4R010M125000000 | 50 | 12 | 14 | 1.420 | 36.1 | 1530 | 2277 | 10 | 2610 | 1184 | 12.8 | 325 |
| 4R010M100200000 | 2 | 10 | 12 | 0.458 | 11.6 | 144 | 215 | 30 | 166 | 75 | 4.1 | 105 |
| 4R010M100300000 | 3 | 10 | 12 | 0.498 | 12.7 | 184 | 275 | 30 | 249 | 113 | 4.5 | 114 |
| 4R010M100400000 | 4 | 10 | 12 | 0.572 | 14.5 | 245 | 365 | 24 | 332 | 151 | 5.2 | 131 |
| 4R010M100500000 | 5 | 10 | 12 | 0.611 | 15.5 | 288 | 429 | 24 | 415 | 188 | 5.5 | 140 |
| 4R010M100600000 | 6 | 10 | 12 | 0.664 | 16.9 | 338 | 503 | 24 | 498 | 226 | 6.0 | 152 |
| 4R010M100700000 | 7 | 10 | 12 | 0.717 | 18.2 | 388 | 578 | 21 | 581 | 264 | 6.5 | 164 |
| 4R010M100800000 | 8 | 10 | 12 | 0.771 | 19.6 | 433 | 645 | 21 | 664 | 301 | 6.9 | 176 |
| 4R010M101000000 | 10 | 10 | 12 | 0.840 | 21.3 | 514 | 764 | 21 | 830 | 376 | 7.6 | 192 |
| 4R010M101200000 | 12 | 10 | 12 | 0.906 | 23.0 | 624 | 928 | 21 | 996 | 452 | 8.2 | 207 |
| 4R010M101400000 | 14 | 10 | 12 | 0.952 | 24.2 | 712 | 1060 | 21 | 1162 | 527 | 8.6 | 218 |
| 4R010M101500000 | 15 | 10 | 12 | 0.977 | 24.8 | 755 | 1124 | 21 | 1245 | 565 | 8.8 | 223 |
| 4R010M102500000 | 25 | 10 | 12 | 1.232 | 31.3 | 1197 | 1781 | 18 | 2075 | 941 | 11.1 | 282 |
| 4R010M103000000 | 30 | 10 | 12 | 1.304 | 33.1 | 1398 | 2080 | 18 | 2490 | 1129 | 11.7 | 298 |
| 4R010M104000000 | 40 | 10 | 12 | 1.461 | 37.1 | 1824 | 2714 | 18 | 3320 | 1506 | 13.1 | 334 |
| 4R010M105000000 | 50 | 10 | 12 | 1.626 | 41.3 | 2238 | 3330 | 15 | 4150 | 1882 | 14.6 | 372 |
*Ampacity value based on Canadian Electrical Code, Part 1 (2021 25th Edition), Table 2 or Table 57. Values are corrected for number of insulated conductors as applicable according to Table 5C or Table 57.
- Energy
- Industrial
- Industrial Construction/Automation
- Petrochem/Pulp & Paper
- Utility
