UL Type MC Armored Power, Multi-Conductor, 600/1000 V
Metal Clad AIA Power cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
Construction
Voltage
600V, 1000V (optional)
Product Construction
-
- Insulation:
- FR XLPE (XHHW-2 rated) rated: 90°C wet / dry
- VW-1 rated (optional)
- Insulation:
-
- Armor:
- Aluminum Interlocked Armor (AIA) (standard)
- Steel Interlocked Armor (SIA) (optional)
- Armor:
-
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Jacket:
- Available in:
- Custom insulation / jacket colours
- Composite constructions
- Inner jacket (optional)
Colour Coding
- Black conductors (standard)
- Optional:
- Method1 K1 or K2
Certifications
Certifications/Compliances
- UL 1569, Metal Clad Cables (MC)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours) (for CT use)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)
Properties

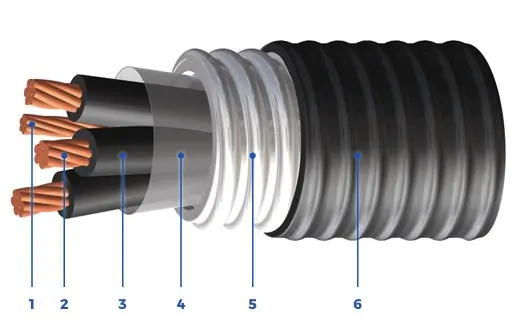

- Grounding / Bonding Conductor
- Strand Bare (ASTM B8) Annealed Copper Conductors
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Polyester Separator Tape
- Aluminum Interlocked Armor (AIA)
- FR PVC Outer Protective Black Jacket
| Part Number | Number of Conductors | Conductor Size | Ground Wire Size | Nominal Diameters | Cable Weight | Ampacity | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius(Pull)) | |
| Over Armour | Overall Cable | ||||||||
| (AWG/kcmil) | (AWG/kcmil) | (in/ mm) | (in/mm) | (lbs/1000ft)/ (kg/km) | (30°C ambient) | (lb/kg) | (in/mm) | ||
| 2C610U140200309 | 2 | 14 | 14 | 0.510 / 13.0 | 0.622 / 15.8 | 172 / 256 | 25 | 66 / 30 | 11.2 / 284 |
| 2C610U120200309 | 2 | 12 | 12 | 0.546 / 13.9 | 0.658 / 16.7 | 206 / 306 | 30 | 104 / 47 | 11.8 / 301 |
| 2C610U100200309 | 2 | 10 | 10 | 0.596 / 15.1 | 0.708 / 18.0 | 258 / 383 | 40 | 166 / 75 | 12.7 / 324 |
| 2C610U080200309 | 2 | 8 | 10 | 0.714 / 18.1 | 0.826 / 21.0 | 348 / 518 | 55 | 265 / 120 | 14.9 / 378 |
| 2C610U060200309 | 2 | 6 | 8 | 0.792 / 20.1 | 0.904 / 23.0 | 456 / 678 | 75 | 419 / 190 | 16.3 / 413 |
| 2C610U040200309 | 2 | 4 | 8 | 0.886 / 22.5 | 0.998 / 25.4 | 594 / 885 | 95 | 668 / 303 | 18 / 456 |
| 2C610U030200309 | 2 | 3 | 6 | 0.940 / 23.9 | 1.052 / 26.7 | 714 / 1063 | 115 | 842 / 382 | 18.9 / 481 |
| 2C610U020200309 | 2 | 2 | 6 | 0.966 / 24.5 | 1.078 / 27.4 | 824 / 1226 | 130 | 1062 / 482 | 19.4 / 493 |
| 2C610U010240309 | 2 | 1 | 6 | 1.084 / 27.5 | 1.196 / 30.4 | 993 / 1477 | 145 | 1339 / 607 | 21.5 / 547 |
| 2C610U1/0240309 | 2 | 1/0 | 6 | 1.164 / 29.6 | 1.276 / 32.4 | 1174 / 1747 | 170 | 1690 / 766 | 23 / 583 |
| 2C610U2/0240309 | 2 | 2/0 | 6 | 1.250 / 31.8 | 1.362 / 34.6 | 1392 / 2071 | 195 | 2130 / 966 | 24.5 / 623 |
| 2C610U3/0240309 | 2 | 3/0 | 4 | 1.352 / 34.3 | 1.464 / 37.2 | 1710 / 2544 | 225 | 2671 / 1212 | 26.4 / 669 |
| 2C610U4/0240309 | 2 | 4/0 | 4 | 1.464 / 37.2 | 1.576 / 40.0 | 2050 / 3051 | 260 | 3386 / 1536 | 28.4 / 721 |
| 2C610U250260309 | 2 | 250 | 4 | 1.596 / 40.6 | 1.728 / 43.9 | 2393 / 3561 | 290 | 4000 / 1814 | 31.1 / 790 |
| 2C610U300260309 | 2 | 300 | 3 | 1.702 / 43.2 | 1.834 / 46.6 | 2804 / 4173 | 320 | 4800 / 2177 | 33 / 839 |
| 2C610U350260309 | 2 | 350 | 3 | 1.802 / 45.8 | 1.934 / 49.1 | 3180 / 4732 | 350 | 5600 / 2540 | 34.8 / 884 |
| 2C610U500260309 | 2 | 500 | 3 | 2.159 / 54.8 | 2.291 / 58.2 | 4492 / 6685 | 430 | 8000 / 3629 | 41.2 / 1047 |
| 2C610U140300309 | 3 | 14 | 14 | 0.541 / 13.7 | 0.653 / 16.6 | 192 / 285 | 25 | 99 / 45 | 11.7 / 298 |
| 2C610U120300309 | 3 | 12 | 12 | 0.581 / 14.8 | 0.693 / 17.6 | 234 / 348 | 30 | 157 / 71 | 12.5 / 317 |
| 2C610U100300309 | 3 | 10 | 10 | 0.637 / 16.2 | 0.748 / 19.0 | 304 / 453 | 40 | 249 / 113 | 13.5 / 342 |
| 2C610U080300309 | 3 | 8 | 10 | 0.768 / 19.5 | 0.880 / 22.4 | 423 / 630 | 55 | 397 / 180 | 15.8 / 402 |
| 2C610U060300309 | 3 | 6 | 8 | 0.854 / 21.7 | 0.966 / 24.6 | 563 / 838 | 75 | 629 / 285 | 17.4 / 442 |
| 2C610U040300309 | 3 | 4 | 8 | 0.934 / 23.7 | 1.046 / 26.6 | 751 / 1118 | 95 | 1002 / 454 | 18.8 / 478 |
| 2C610U030300309 | 3 | 3 | 6 | 0.972 / 24.7 | 1.084 / 27.5 | 901 / 1341 | 115 | 1263 / 573 | 19.5 / 496 |
| 2C610U020300309 | 3 | 2 | 6 | 1.023 / 26.0 | 1.135 / 28.8 | 1058 / 1575 | 130 | 1593 / 723 | 20.4 / 519 |
| 2C610U010340309 | 3 | 1 | 6 | 1.149 / 29.2 | 1.261 / 32.0 | 1292 / 1923 | 145 | 2009 / 911 | 22.7 / 577 |
| 2C610U1/0340309 | 3 | 1/0 | 6 | 1.235 / 31.4 | 1.347 / 34.2 | 1546 / 2300 | 170 | 2534 / 1150 | 24.3 / 616 |
| 2C610U2/0340309 | 3 | 2/0 | 6 | 1.328 / 33.7 | 1.440 / 36.6 | 1853 / 2757 | 195 | 3194 / 1449 | 25.9 / 658 |
| 2C610U3/0340309 | 3 | 3/0 | 4 | 1.438 / 36.5 | 1.549 / 39.4 | 2285 / 3401 | 225 | 4007 / 1818 | 27.9 / 708 |
| 2C610U4/0340309 | 3 | 4/0 | 4 | 1.558 / 39.6 | 1.690 / 42.9 | 2794 / 4158 | 260 | 5078 / 2304 | 30.4 / 773 |
| 2C610U250360309 | 3 | 250 | 4 | 1.700 / 43.2 | 1.832 / 46.5 | 3232 / 4809 | 290 | 6000 / 2722 | 33 / 837 |
| 2C610U300360309 | 3 | 300 | 3 | 1.814 / 46.1 | 1.946 / 49.4 | 3798 / 5652 | 320 | 7200 / 3266 | 35 / 890 |
| 2C610U350360309 | 3 | 350 | 3 | 2.022 / 51.4 | 2.154 / 54.7 | 4528 / 6738 | 350 | 8400 / 3810 | 38.8 / 985 |
| 2C610U500360309 | 3 | 500 | 3 | 2.298 / 58.4 | 2.459 / 62.5 | 6206 / 9236 | 430 | 12000 / 5443 | 44.3 / 1124 |
| 2C610U140400309 | 4 | 14 | 14 | 0.574 / 14.6 | 0.686 / 17.4 | 217 / 323 | 20 | 132 / 60 | 12.3 / 314 |
| 2C610U120400309 | 4 | 12 | 12 | 0.618 / 15.7 | 0.730 / 18.6 | 269 / 400 | 24 | 209 / 95 | 13.1 / 334 |
| 2C610U100400309 | 4 | 10 | 10 | 0.680 / 17.3 | 0.792 / 20.1 | 349 / 520 | 32 | 332 / 151 | 14.3 / 362 |
| 2C610U080400309 | 4 | 8 | 10 | 0.827 / 21.0 | 0.939 / 23.9 | 502 / 747 | 44 | 529 / 240 | 16.9 / 429 |
| 2C610U060400309 | 4 | 6 | 8 | 0.922 / 23.4 | 1.035 / 26.3 | 679 / 1011 | 60 | 839 / 380 | 18.6 / 473 |
| 2C610U040400309 | 4 | 4 | 8 | 1.003 / 25.5 | 1.115 / 28.3 | 922 / 1372 | 76 | 1336 / 606 | 20.1 / 510 |
| 2C610U030400309 | 4 | 3 | 6 | 1.070 / 27.2 | 1.182 / 30.0 | 1115 / 1660 | 92 | 1684 / 764 | 21.3 / 540 |
| 2C610U020400309 | 4 | 2 | 6 | 1.147 / 29.1 | 1.259 / 32.0 | 1329 / 1978 | 104 | 2124 / 964 | 22.7 / 576 |
| 2C610U010440309 | 4 | 1 | 6 | 1.263 / 32.1 | 1.375 / 35.0 | 1625 / 2418 | 116 | 2678 / 1215 | 24.7 / 629 |
| 2C610U1/0440309 | 4 | 1/0 | 6 | 1.359 / 34.5 | 1.471 / 37.4 | 1954 / 2908 | 136 | 3379 / 1533 | 26.5 / 673 |
| 2C610U2/0440309 | 4 | 2/0 | 6 | 1.463 / 37.2 | 1.575 / 40.0 | 2359 / 3510 | 156 | 4259 / 1932 | 28.3 / 720 |
| 2C610U3/0440309 | 4 | 3/0 | 4 | 1.586 / 40.3 | 1.718 / 43.7 | 2953 / 4395 | 180 | 5343 / 2423 | 30.9 / 785 |
| 2C610U4/0440309 | 4 | 4/0 | 4 | 1.721 / 43.7 | 1.853 / 47.0 | 3585 / 5335 | 208 | 6771 / 3071 | 33.3 / 847 |
| 2C610U250460309 | 4 | 250 | 4 | 1.981 / 50.3 | 2.113 / 53.7 | 4335 / 6451 | 232 | 8000 / 3629 | 38 / 966 |
| 2C610U300460309 | 4 | 300 | 3 | 2.108 / 53.6 | 2.240 / 56.9 | 5084 / 7566 | 256 | 9600 / 4355 | 40.3 / 1024 |
| 2C610U350460309 | 4 | 350 | 3 | 2.229 / 56.6 | 2.361 / 60.0 | 5804 / 8637 | 280 | 11200 / 5080 | 42.5 / 1079 |
| 2C610U500460309 | 4 | 500 | 3 | 2.537 / 64.5 | 2.699 / 68.6 | 8002 / 11908 | 344 | 16000 / 7258 | 48.6 / 1234 |
*Ampacity value based on National Electrical Code, Version 2020, Table 310.16. Values are corrected according to Table 310.15(C)(1) for number of Conductors. Per NEC 310.15(C)(1), the ampacity of 4/C cable shall be reduced by a factor of 0.8 when the neutral is considered a current-carrying conductor.
