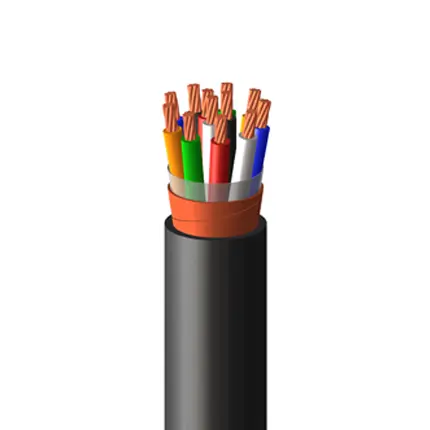

UL Unarmored Tray, TC-ER, Helical Copper Tape Shielded, Control, XLPE/PVC, Multi-Conductor, 600 V
Shawflex UL Tray Helical Copper Tape Shielded Control cables offers the best effective way to protect your electrical property against the interference through induction and capacitive coupling in the complex electric magnetic field, for example in the substation environment. Permitted for Exposed Run (ER) use in accordance with NEC, reducing installation cost and time. Offering superior performance in harsh environment with all color sunlight resistance jacket, -40°C cold bend, and oil resistance.
Construction
Voltage
600 V

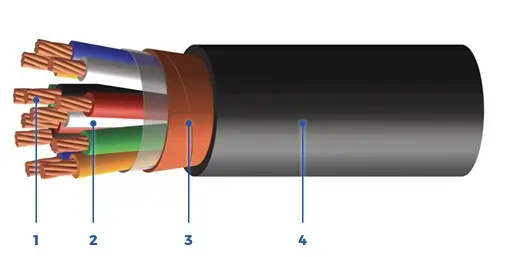

Product Construction
-
- Conductor:
- 14 AWG through 10 AWG fully annealed standard bare copper per Class B ASTM B8 stranding
- Conductor:
-
- Insulation:
- Cross-linked Polyethylene (Type XHHW-2). 90°C DRY/WET
- Insulation:
-
- Metallic Shield:
- Overall Helical 5mil copper tape
- Metallic Shield:
- Jacket:
- Polyvinyl Chloride (PVC), Sunlight Resistant in all colors
COLOUR CODING
- Color-coded per ICEA Method 1, Table E-2
*Optional color codes are available
LEGEND
- SHAWFLEX 3C XX AWG 600V (UL) TC-ER
- XHHW-2 90C WET/DRY SUN RES DIRECT BURIAL
- IEEE 1202/FT4 90C PVC JACKET OIL RES I
- MADE IN CANADA
- Part # (mo#) (month year)
- (sequential footage marking every 2 feet)
Certifications
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44 Type XHHW-2
- IEEE 1202/FT4, UL 1685
- ICEA T-29-520
- UL 1581/UL 2556 VW-1
- SUN RES in all colors
- DIR BUR
- -40ºC Cold Bend
- OIL RES I
Properties
- Stranded Bare (ASTM B8) Annealed Copper Conductors (Tinned Available)
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Overall Helical 5mil Copper Tape
- Polyvinyl Chloride (PVC) Jacket
| Part Number | Conductor Count | Conductor Size | Nominal Overall Diameter Of Cable | Cable Weight | Ampacity 30°C Ambient | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| (AWG) | (in) | (lbs/1000ft) | (amps) | (lb) | (in) | ||
| 2V01HU140200201 | 2 | 14 | 0.40 | 106 | 25 | 66 | 7.13 |
| 2V01HU140300201 | 3 | 14 | 0.42 | 127 | 25 | 99 | 7.50 |
| 2V01HU140400201 | 4 | 14 | 0.45 | 154 | 20 | 132 | 8.12 |
| 2V01HU140500201 | 5 | 14 | 0.49 | 178 | 20 | 164 | 8.80 |
| 2V01HU140600201 | 6 | 14 | 0.53 | 207 | 20 | 197 | 9.52 |
| 2V01HU140700201 | 7 | 14 | 0.53 | 222 | 17.5 | 230 | 9.52 |
| 2V01HU140800201 | 8 | 14 | 0.60 | 268 | 17.5 | 263 | 10.78 |
| 2V01HU141000201 | 10 | 14 | 0.69 | 329 | 12.5 | 329 | 12.46 |
| 2V01HU141200201 | 12 | 14 | 0.71 | 369 | 12.5 | 395 | 12.82 |
| 2V01HU141400201 | 14 | 14 | 0.75 | 416 | 12.5 | 460 | 13.44 |
| 2V01HU141600201 | 16 | 14 | 0.79 | 460 | 12.5 | 526 | 14.13 |
| 2V01HU142000201 | 20 | 14 | 0.90 | 592 | 12.5 | 658 | 16.29 |
| 2V01HU143000201 | 30 | 14 | 1.05 | 817 | 11.25 | 986 | 18.95 |
| 2V01HU144000201 | 40 | 14 | 1.17 | 1036 | 10 | 1315 | 21.08 |
| 2V01HU145000201 | 50 | 14 | 1.30 | 1260 | 8.75 | 1644 | 23.33 |
| 2V01HU120200201 | 2 | 12 | 0.43 | 133 | 30 | 104 | 7.78 |
| 2V01HU120300201 | 3 | 12 | 0.46 | 165 | 30 | 157 | 8.20 |
| 2V01HU120400201 | 4 | 12 | 0.49 | 199 | 24 | 209 | 8.90 |
| 2V01HU120500201 | 5 | 12 | 0.57 | 253 | 24 | 261 | 10.22 |
| 2V01HU120600201 | 6 | 12 | 0.61 | 295 | 24 | 313 | 11.03 |
| 2V01HU120700201 | 7 | 12 | 0.61 | 319 | 21 | 366 | 11.03 |
| 2V01HU120800201 | 8 | 12 | 0.66 | 353 | 21 | 418 | 11.85 |
| 2V01HU121000201 | 10 | 12 | 0.76 | 436 | 15 | 522 | 13.75 |
| 2V01HU121200201 | 12 | 12 | 0.79 | 496 | 15 | 627 | 14.16 |
| 2V01HU121400201 | 14 | 12 | 0.83 | 559 | 15 | 731 | 14.87 |
| 2V01HU121600201 | 16 | 12 | 0.91 | 654 | 15 | 836 | 16.37 |
| 2V01HU122000201 | 20 | 12 | 1.00 | 796 | 15 | 1045 | 18.01 |
| 2V01HU123000201 | 30 | 12 | 1.17 | 1114 | 13.5 | 1567 | 21.02 |
| 2V01HU124000201 | 40 | 12 | 1.30 | 1424 | 12 | 2090 | 23.44 |
| 2V01HU125000201 | 50 | 12 | 1.44 | 1743 | 10.5 | 2612 | 26.00 |
| 2V01HU100200201 | 2 | 10 | 0.48 | 173 | 40 | 166 | 8.68 |
| 2V01HU100300201 | 3 | 10 | 0.51 | 218 | 40 | 249 | 9.17 |
| 2V01HU100400201 | 4 | 10 | 0.58 | 287 | 32 | 332 | 10.53 |
| 2V01HU100500201 | 5 | 10 | 0.64 | 338 | 32 | 415 | 11.43 |
| 2V01HU100600201 | 6 | 10 | 0.69 | 396 | 32 | 498 | 12.38 |
| 2V01HU100700201 | 7 | 10 | 0.69 | 432 | 28 | 581 | 12.38 |
| 2V01HU100800201 | 8 | 10 | 0.74 | 484 | 28 | 664 | 13.33 |
| 2V01HU101000201 | 10 | 10 | 0.90 | 632 | 20 | 830 | 16.27 |
| 2V01HU101200201 | 12 | 10 | 0.93 | 721 | 20 | 996 | 16.75 |
| 2V01HU101400201 | 14 | 10 | 0.98 | 818 | 20 | 1163 | 17.57 |
| 2V01HU101600201 | 16 | 10 | 1.03 | 907 | 20 | 1329 | 18.49 |
| 2V01HU102000201 | 20 | 10 | 1.13 | 1114 | 20 | 1661 | 20.39 |
| 2V01HU103000201 | 30 | 10 | 1.33 | 1576 | 18 | 2491 | 23.91 |
| 2V01HU104000201 | 40 | 10 | 1.48 | 2028 | 16 | 3322 | 26.73 |
| 2V01HU105000201 | 50 | 10 | 1.65 | 2494 | 14 | 4152 | 29.71 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors
Markets / Applications
This product does not currently have any associated applications. Please check back at a later date.
Voltage
600 V
Product Construction
-
- Conductor:
- 14 AWG through 10 AWG fully annealed standard bare copper per Class B ASTM B8 stranding
- Conductor:
-
- Insulation:
- Cross-linked Polyethylene (Type XHHW-2). 90°C DRY/WET
- Insulation:
-
- Metallic Shield:
- Overall Helical 5mil copper tape
- Metallic Shield:
- Jacket:
- Polyvinyl Chloride (PVC), Sunlight Resistant in all colors
COLOUR CODING
- Color-coded per ICEA Method 1, Table E-2
*Optional color codes are available
LEGEND
- SHAWFLEX 3C XX AWG 600V (UL) TC-ER
- XHHW-2 90C WET/DRY SUN RES DIRECT BURIAL
- IEEE 1202/FT4 90C PVC JACKET OIL RES I
- MADE IN CANADA
- Part # (mo#) (month year)
- (sequential footage marking every 2 feet)
Certifications/Compliances
- UL 1277, Tray Cable (TC-ER)
- UL 44 Type XHHW-2
- IEEE 1202/FT4, UL 1685
- ICEA T-29-520
- UL 1581/UL 2556 VW-1
- SUN RES in all colors
- DIR BUR
- -40ºC Cold Bend
- OIL RES I
- Stranded Bare (ASTM B8) Annealed Copper Conductors (Tinned Available)
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Overall Helical 5mil Copper Tape
- Polyvinyl Chloride (PVC) Jacket
| Part Number | Conductor Count | Conductor Size | Nominal Overall Diameter Of Cable | Cable Weight | Ampacity 30°C Ambient | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
| (AWG) | (in) | (lbs/1000ft) | (amps) | (lb) | (in) | ||
| 2V01HU140200201 | 2 | 14 | 0.40 | 106 | 25 | 66 | 7.13 |
| 2V01HU140300201 | 3 | 14 | 0.42 | 127 | 25 | 99 | 7.50 |
| 2V01HU140400201 | 4 | 14 | 0.45 | 154 | 20 | 132 | 8.12 |
| 2V01HU140500201 | 5 | 14 | 0.49 | 178 | 20 | 164 | 8.80 |
| 2V01HU140600201 | 6 | 14 | 0.53 | 207 | 20 | 197 | 9.52 |
| 2V01HU140700201 | 7 | 14 | 0.53 | 222 | 17.5 | 230 | 9.52 |
| 2V01HU140800201 | 8 | 14 | 0.60 | 268 | 17.5 | 263 | 10.78 |
| 2V01HU141000201 | 10 | 14 | 0.69 | 329 | 12.5 | 329 | 12.46 |
| 2V01HU141200201 | 12 | 14 | 0.71 | 369 | 12.5 | 395 | 12.82 |
| 2V01HU141400201 | 14 | 14 | 0.75 | 416 | 12.5 | 460 | 13.44 |
| 2V01HU141600201 | 16 | 14 | 0.79 | 460 | 12.5 | 526 | 14.13 |
| 2V01HU142000201 | 20 | 14 | 0.90 | 592 | 12.5 | 658 | 16.29 |
| 2V01HU143000201 | 30 | 14 | 1.05 | 817 | 11.25 | 986 | 18.95 |
| 2V01HU144000201 | 40 | 14 | 1.17 | 1036 | 10 | 1315 | 21.08 |
| 2V01HU145000201 | 50 | 14 | 1.30 | 1260 | 8.75 | 1644 | 23.33 |
| 2V01HU120200201 | 2 | 12 | 0.43 | 133 | 30 | 104 | 7.78 |
| 2V01HU120300201 | 3 | 12 | 0.46 | 165 | 30 | 157 | 8.20 |
| 2V01HU120400201 | 4 | 12 | 0.49 | 199 | 24 | 209 | 8.90 |
| 2V01HU120500201 | 5 | 12 | 0.57 | 253 | 24 | 261 | 10.22 |
| 2V01HU120600201 | 6 | 12 | 0.61 | 295 | 24 | 313 | 11.03 |
| 2V01HU120700201 | 7 | 12 | 0.61 | 319 | 21 | 366 | 11.03 |
| 2V01HU120800201 | 8 | 12 | 0.66 | 353 | 21 | 418 | 11.85 |
| 2V01HU121000201 | 10 | 12 | 0.76 | 436 | 15 | 522 | 13.75 |
| 2V01HU121200201 | 12 | 12 | 0.79 | 496 | 15 | 627 | 14.16 |
| 2V01HU121400201 | 14 | 12 | 0.83 | 559 | 15 | 731 | 14.87 |
| 2V01HU121600201 | 16 | 12 | 0.91 | 654 | 15 | 836 | 16.37 |
| 2V01HU122000201 | 20 | 12 | 1.00 | 796 | 15 | 1045 | 18.01 |
| 2V01HU123000201 | 30 | 12 | 1.17 | 1114 | 13.5 | 1567 | 21.02 |
| 2V01HU124000201 | 40 | 12 | 1.30 | 1424 | 12 | 2090 | 23.44 |
| 2V01HU125000201 | 50 | 12 | 1.44 | 1743 | 10.5 | 2612 | 26.00 |
| 2V01HU100200201 | 2 | 10 | 0.48 | 173 | 40 | 166 | 8.68 |
| 2V01HU100300201 | 3 | 10 | 0.51 | 218 | 40 | 249 | 9.17 |
| 2V01HU100400201 | 4 | 10 | 0.58 | 287 | 32 | 332 | 10.53 |
| 2V01HU100500201 | 5 | 10 | 0.64 | 338 | 32 | 415 | 11.43 |
| 2V01HU100600201 | 6 | 10 | 0.69 | 396 | 32 | 498 | 12.38 |
| 2V01HU100700201 | 7 | 10 | 0.69 | 432 | 28 | 581 | 12.38 |
| 2V01HU100800201 | 8 | 10 | 0.74 | 484 | 28 | 664 | 13.33 |
| 2V01HU101000201 | 10 | 10 | 0.90 | 632 | 20 | 830 | 16.27 |
| 2V01HU101200201 | 12 | 10 | 0.93 | 721 | 20 | 996 | 16.75 |
| 2V01HU101400201 | 14 | 10 | 0.98 | 818 | 20 | 1163 | 17.57 |
| 2V01HU101600201 | 16 | 10 | 1.03 | 907 | 20 | 1329 | 18.49 |
| 2V01HU102000201 | 20 | 10 | 1.13 | 1114 | 20 | 1661 | 20.39 |
| 2V01HU103000201 | 30 | 10 | 1.33 | 1576 | 18 | 2491 | 23.91 |
| 2V01HU104000201 | 40 | 10 | 1.48 | 2028 | 16 | 3322 | 26.73 |
| 2V01HU105000201 | 50 | 10 | 1.65 | 2494 | 14 | 4152 | 29.71 |
*Ampacity value based on National Electrical Code, Version 2017, Table 3-10.15(B)(16). Values are corrected according to Table 310.15(B)(3)(a) for number of Conductors
This product does not currently have any associated applications. Please check back at a later date.
Related products
-

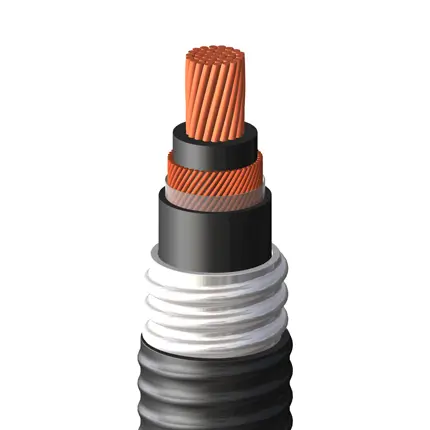

UL Type MC Armored Power, Single Conductor, 600/1000 V
