UL Type MC Armored Instrumentation, 600 V
Metal Clad Armored Instrumentation cables can be used to minimize noise and signal interference by preventing crosstalk between pairs and triads. This cable can also be used to convert analogue or digital signals. Tray Instrumentation cables can be installed in raceways, direct burial applications and in outdoor exposed industrial applications.
Construction
Voltage
600V
Product Construction
-
- Insulation:
- FR XLPE (XHHW-2 rated) rated: 90°C wet / dry
- VW-1 rated (optional)
- Insulation:
-
- Armor:
- Aluminum Interlocked Armor (AIA) (standard)
- Steel Interlocked Armor (SIA) (optional)
- Armor:
-
- Jacket:
- FR PVC outer black jacket rated: 90°C to -40°C
- Thermoset CPE optional)
- Thermoplastic CPE (optional)
- Thermoplastic LSZH (optional)
- Jacket:
- Available in:
- Custom insulation / jacket colours
- Composite constructions
Colour Coding
- Pairs – Black, & white, with black printing on white (standard)
- Triads – Black, white & red, with black printing on white (standard)
- Method K1 or K2 (optional)
- Method 4 (optional)
Certifications
Certifications/Compliances
- UL 1569, Metal Clad Cables (MC)
- UL 44, Thermoset Insulated Wires and Cables
- UL 1685 / FT4, Vertical Tray Flame Test rated
- IEEE 1202 / 383 (70,000 BTU / hr), Vertical Flame Test rated
- ICEA T-30-520 (70,000 BTU / hr), Vertical Flame Test rated
- XLPE (XHHW-2 rated), 90°C wet / dry
- UV sunlight resistant SUN RES (all colours) (for CT use)
- Direct burial rated
- -40°C cold bend rated
- Rated for use in hazardous locations:
- Class I Zone 2 (Div 2)
- Class II Zone 22 (Div 2)

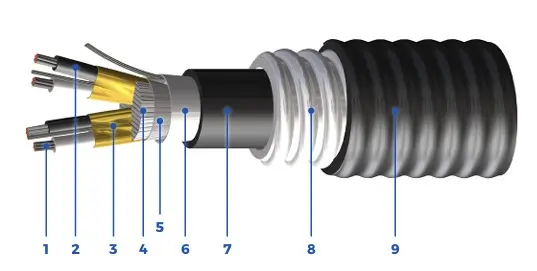

Properties
- Stranded Bare Copper Conductors (Tinned Available)
- FR XLPE (XHHW-2 Rated) Insulated Conductors
- Individual Shield & Overall Shielded Pairs / Triads
- Polypropylene Fillers
- Polyester Separator Tape
- Overall Aluminum / Mylar Shield with Tinned Copper Drain Wire
- FR PVC Inner Protective Jacket
- Aluminum Interlocked Armor (AIA)
- FR PVC Outer Protective Jacket
PAIRS
| Part Number | Number of Pairs | Conductor Size | OD Over Jacket | Nominal Diameters | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius(Pull)) | |
| Over Armour | Overall Cable | |||||||
| (AWG/kcmil) | (in/mm) | (in/mm) | (in/mm) | (lbs/1000ft)/ (kg/km) | (lb/kg) | (in/mm) | ||
| 2C621U160100300 | 1 | 16 | 0.337 / 8.6 | 0.577 / 14.7 | 0.689 / 17.5 | 194 / 288 | 41 / 19 | 12.4 / 315 |
| 2C622U160200300 | 2 | 16 | 0.504 / 12.8 | 0.744 / 18.9 | 0.856 / 21.8 | 300 / 446 | 82 / 37 | 15.4 / 392 |
| 2C622U160400300 | 4 | 16 | 0.627 / 15.9 | 0.866 / 22.0 | 0.978 / 24.9 | 401 / 597 | 165 / 75 | 17.6 / 447 |
| 2C622U160600300 | 6 | 16 | 0.736 / 18.7 | 0.976 / 24.8 | 1.088 / 27.6 | 511 / 761 | 247 / 112 | 19.6 / 498 |
| 2C622U160800300 | 8 | 16 | 0.865 / 22.0 | 1.069 / 27.2 | 1.181 / 30.0 | 612 / 911 | 330 / 150 | 21.3 / 540 |
| 2C622U161200300 | 12 | 16 | 0.982 / 24.9 | 1.186 / 30.1 | 1.298 / 33.0 | 783 / 1166 | 494 / 224 | 23.4 / 593 |
| 2C622U161600300 | 16 | 16 | 1.100 / 27.9 | 1.304 / 33.1 | 1.416 / 36.0 | 946 / 1408 | 659 / 299 | 25.5 / 647 |
| 2C622U162400300 | 24 | 16 | 1.378 / 35.0 | 1.582 / 40.2 | 1.714 / 43.6 | 1342 / 1997 | 989 / 449 | 30.9 / 784 |
| 2C622U163600300 | 36 | 16 | 1.597 / 40.6 | 1.801 / 45.8 | 1.933 / 49.1 | 1800 / 2679 | 1483 / 673 | 34.8 / 884 |
| 2C621U180100300 | 1 | 18 | 0.313 / 8.0 | 0.553 / 14.1 | 0.665 / 16.9 | 176 / 261 | 26 / 12 | 12 / 304 |
| 2C622U180200300 | 2 | 18 | 0.465 / 11.8 | 0.705 / 17.9 | 0.817 / 20.7 | 263 / 392 | 52 / 24 | 14.7 / 373 |
| 2C622U180400300 | 4 | 18 | 0.577 / 14.7 | 0.817 / 20.8 | 0.929 / 23.6 | 343 / 511 | 104 / 47 | 16.7 / 425 |
| 2C622U180600300 | 6 | 18 | 0.676 / 17.2 | 0.916 / 23.3 | 1.028 / 26.1 | 428 / 638 | 156 / 71 | 18.5 / 470 |
| 2C622U180800300 | 8 | 18 | 0.792 / 20.1 | 0.996 / 25.3 | 1.108 / 28.1 | 505 / 752 | 208 / 94 | 19.9 / 507 |
| 2C622U181200300 | 12 | 18 | 0.897 / 22.8 | 1.101 / 28.0 | 1.213 / 30.8 | 631 / 939 | 312 / 142 | 21.8 / 555 |
| 2C622U181800300 | 18 | 18 | 1.062 / 27.0 | 1.266 / 32.2 | 1.378 / 35.0 | 821 / 1222 | 468 / 212 | 24.8 / 630 |
| 2C622U182400300 | 24 | 18 | 1.255 / 31.9 | 1.459 / 37.1 | 1.571 / 39.9 | 1024 / 1525 | 624 / 283 | 28.3 / 718 |
| 2C622U183600300 | 36 | 18 | 1.452 / 36.9 | 1.656 / 42.1 | 1.788 / 45.4 | 1387 / 2064 | 936 / 425 | 32.2 / 818 |
TRIADS
| Part Number | Number of Triads | Conductor Size | OD Over Jacket | Nominal Diameters | Cable Weight | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius(Pull)) | |
| Over Armour | Overall Cable | |||||||
| (AWG/kcmil) | (in/mm) | (in/mm) | (in/mm) | (lbs/1000ft)/ (kg/km) | (lb/kg) | (in/mm) | ||
| 2C631U160100300 | 1 | 16 | 0.355 / 9.0 | 0.595 / 15.1 | 0.707 / 18.0 | 212 / 316 | 62 / 28 | 12.7 / 323 |
| 2C632U160200300 | 2 | 16 | 0.595 / 15.1 | 0.835 / 21.2 | 0.947 / 24.1 | 369 / 549 | 124 / 56 | 17 / 433 |
| 2C632U160400300 | 4 | 16 | 0.715 / 18.2 | 0.955 / 24.3 | 1.067 / 27.1 | 483 / 719 | 247 / 112 | 19.2 / 488 |
| 2C632U160600300 | 6 | 16 | 0.843 / 21.4 | 1.047 / 26.6 | 1.159 / 29.4 | 620 / 923 | 371 / 168 | 20.9 / 530 |
| 2C632U160800300 | 8 | 16 | 0.993 / 25.2 | 1.197 / 30.4 | 1.309 / 33.3 | 761 / 1132 | 494 / 224 | 23.6 / 599 |
| 2C632U161200300 | 12 | 16 | 1.128 / 28.7 | 1.332 / 33.8 | 1.444 / 36.7 | 989 / 1471 | 742 / 336 | 26 / 660 |
| 2C632U161600300 | 16 | 16 | 1.266 / 32.2 | 1.470 / 37.4 | 1.582 / 40.2 | 1207 / 1796 | 989 / 449 | 28.5 / 723 |
| 2C632U162400300 | 24 | 16 | 1.591 / 40.4 | 1.795 / 45.6 | 1.927 / 49.0 | 1727 / 2570 | 1483 / 673 | 34.7 / 881 |
| 2C631U180100300 | 1 | 18 | 0.329 / 8.4 | 0.569 / 14.5 | 0.681 / 17.3 | 189 / 282 | 39 / 18 | 12.3 / 311 |
| 2C632U180200300 | 2 | 18 | 0.548 / 13.9 | 0.788 / 20.1 | 0.900 / 22.9 | 322 / 479 | 78 / 35 | 16.2 / 412 |
| 2C632U180400300 | 4 | 18 | 0.656 / 16.7 | 0.896 / 22.8 | 1.008 / 25.6 | 409 / 609 | 156 / 71 | 18.1 / 461 |
| 2C632U180600300 | 6 | 18 | 0.771 / 19.6 | 0.991 / 25.2 | 1.103 / 28.0 | 516 / 768 | 234 / 106 | 19.9 / 504 |
| 2C632U180800300 | 8 | 18 | 0.907 / 23.0 | 1.111 / 28.2 | 1.222 / 31.1 | 622 / 925 | 312 / 142 | 22 / 559 |
| 2C632U181200300 | 12 | 18 | 1.029 / 26.1 | 1.233 / 31.3 | 1.345 / 34.2 | 796 / 1185 | 468 / 212 | 24.2 / 615 |
| 2C632U181800300 | 18 | 18 | 1.221 / 31.0 | 1.425 / 36.2 | 1.537 / 39.0 | 1046 / 1557 | 702 / 318 | 27.7 / 703 |
| 2C632U182400300 | 24 | 18 | 1.446 / 36.7 | 1.649 / 41.9 | 1.781 / 45.3 | 1352 / 2011 | 936 / 425 | 32.1 / 814 |
